LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch

Product Categories

Yueqing Kampa Electric Co., Ltd.

Contact Now

Name: LJ12A34ZBX DC NPN 3Wire NO Nonflush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch
Brand: Kampa
Price: 2.00 USD

Model Number : LJ12A3-4-Z/BX

Type : Inductive Proximity Sensor

Place of Origin : Zhejiang, China

Brand Name : Kampa

Usage : Position Sensor

Theory : Inductance Sensor

Output : Switching Transducer

Description : Proximity Sensor

Detection Objects : Metal

Sensing Surface : Non-flush

Size : M12

Output Type : NPN NO

Detection Distance : 4mm

Material : PBT and metal

With Cable : 2m

Application : Industrial Automatic

Packaging Details : 1~10pcs in box and batch in carton

Port : None

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 50 Pieces

Price : $2.00 - $5.00/Pieces

Contact Now

Product Show

LJ12A3-4-Z/BX DC NPN 3-Wire NO Non-flush Type 4mm Detection Distance M12 Inductive Proximity Sensor Switch

Product Description

LJ12A3-4-Z/BX DC NPN 3-Wire NO 4mm Detection Distance

M12 Inductive Proximity Sensor Switch

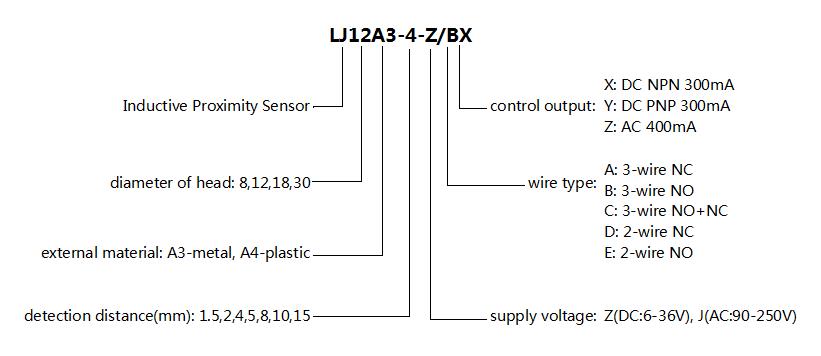

1.Model Number Structure

2.Technical Specification

Model:				M12
Output Form:	DC	NPN	NO	LJ12A3-4-Z/BX
			NC	LJ12A3-4-Z/AX
			NO+NC	LJ12A3-4-Z/CX
		PNP	NO	LJ12A3-4-Z/BY
			NC	LJ12A3-4-Z/AY
			NO+AC	LJ12A3-4-Z/CY
		2-wire	NO	LJ12A3-4-Z/EZ
			NC	LJ12A3-4-Z/DZ
	AC	2-wire	NO	LJ12A3-4-J/EZ
			NC	LJ12A3-4-J/DZ
Sensing Surface: Standard Detecting Object: Detection Distance: Frequency:			Flush Type 12121mm metal 2mm±10% 1000Hz	Non-flush Type 18181mm metal 4mm±10% 800Hz
Frequency:			AC: 20Hz
Detection Object:				Magnetic metal
Voltage Supply:				10~30VDC, 90~250VAC
Static Operating Current:				<10mA
Full-load Current:				DC: ≤200mA AC: ≤300mA
Output Indication:				green LED,360°visible
Power Protection:				DC:reverse protection,short-circuit protection AC:surge protection
Withstand Voltage:				1500V/AC 50/60Hz 1min
Ambient Temperature: Storage Temperature: Ambient Humidity:				-20 ~ +70℃ -30 ~ +80℃ 35~95%
Insulation Resistance:				≥50MΩ
Protection Degree:				IP67

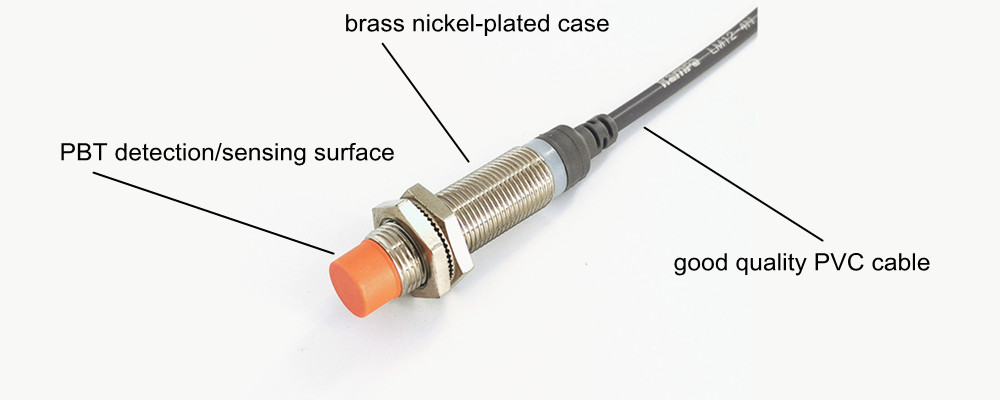

Material:				brass nickel-plated case, PBT detection surface, PVC cable

3.Features

—— Good quality, good sensing performance, anti-interference and stable output.

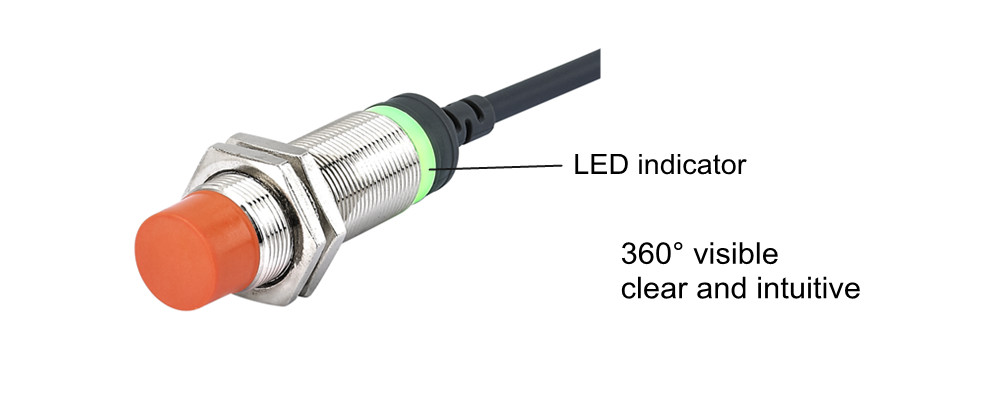

—— LED (green light) indicator to show the output, 360° visible, clear and intuitive.

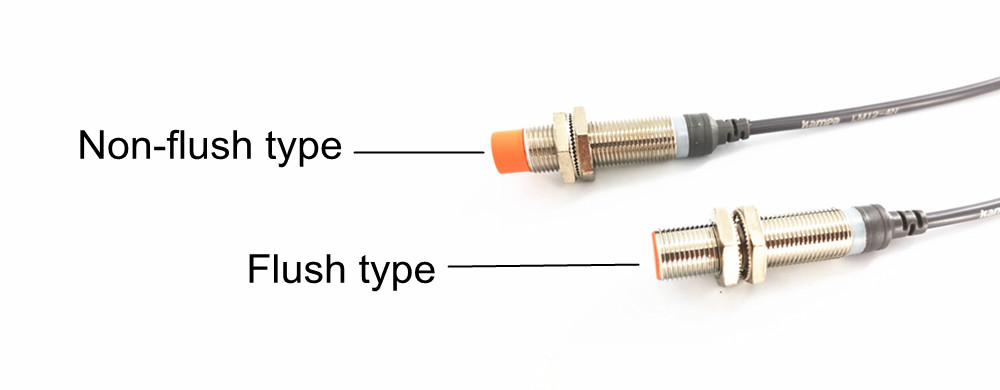

—— Two types available, different sensing distance: non-flush type(4mm), flush type(2mm).

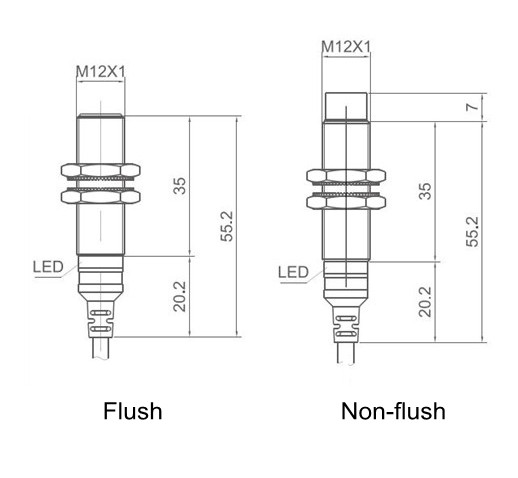

4.Dimension
